Lead Provider of Environmental Test Chamber

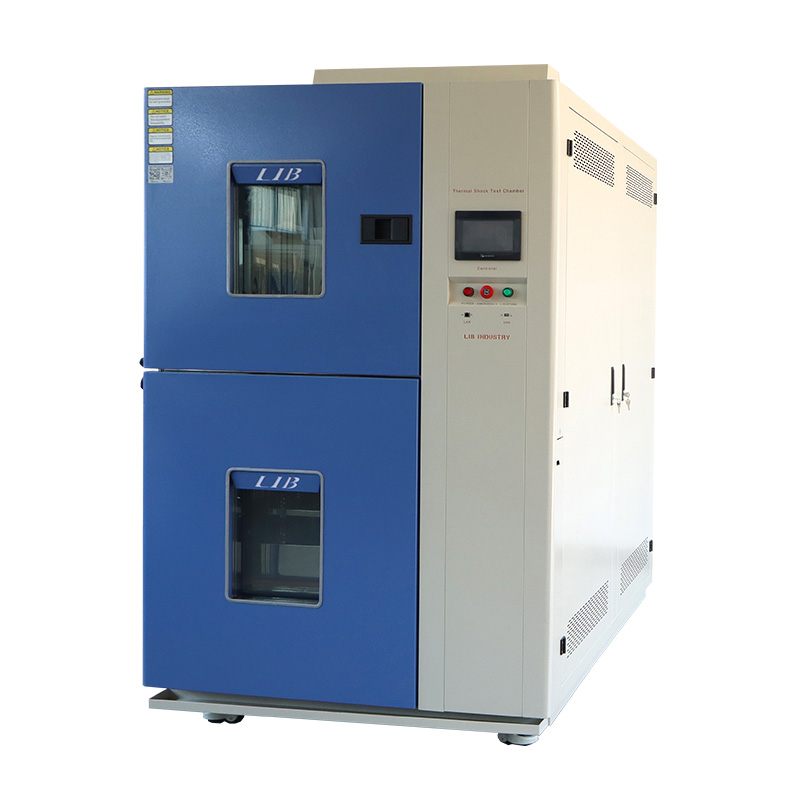

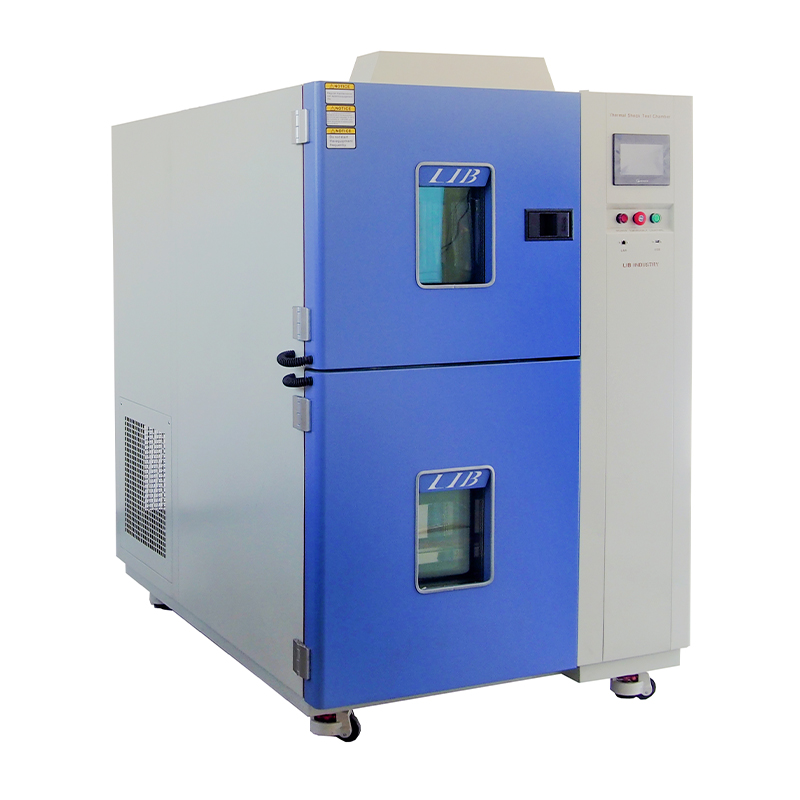

2TS hot cold thermal shock test chamber is available in small capacity and large capacity to meet different testing requirements. The specimen automatic transferred from cold chamber to hot chamber by basket.The basket slides vertically and smoothly through rails, to make the specimen is exposed to the two chambers.Thermal shock test chamber has upgraded to touch-screen controller with Ethernet, you are easy to operate over network.
Product Details
|

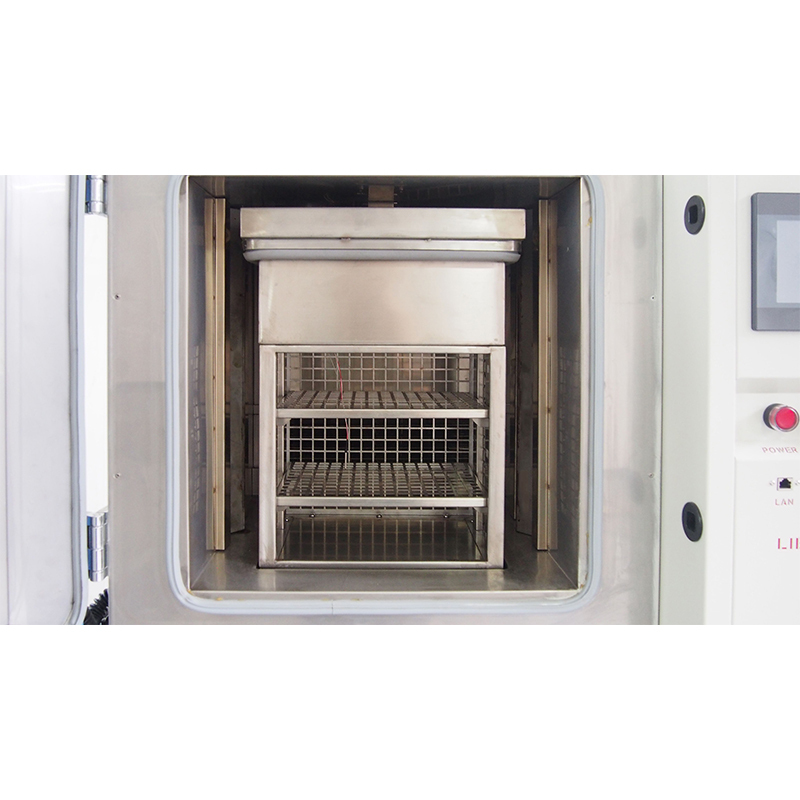

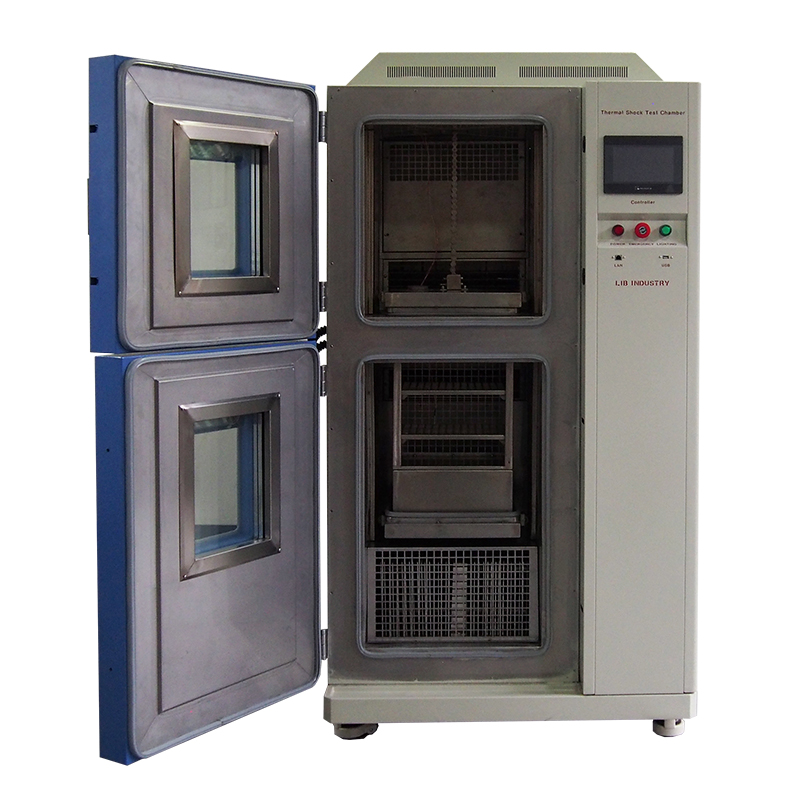

The internal material is 304 stainless steel, rust-proof to high and low temperature and moisture corrosion; The specimen automatic transferred from cold chamber to hot chamber by basket. The basket slides vertically and smoothly through rails to make specimen exposed to chambers. |
|
Application Area
2-Zone Thermal Shock Test Chamber is widely used in automobile, aerospace, materials, electronics, military, paintings, battery, cable, pharmaceuticals, navigation industry, for testing the function and service life of the product by simulating harsh natural environment.
| Model | TS-162 | TS-340 | TS-500 | TS-1000 | |
| Inner dimensions of test room (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 | |
| Volume of test room (mm) | 22L | 72L | 211L | 505L | |
| Load of test room | 20kg | 30kg | 50kg | 60kg | |
| Overall dimensions(mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 | |
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
|
Pre-cool room |
Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3 ℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Safety device | Over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% RH | ||||
Warranty
3 Years Warranty, Lifelong Follow-up Services
LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.
Service
Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time. We set up agent centers and local service centers to improve service efficiency.
LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
EN
Consult
E-mail
Video

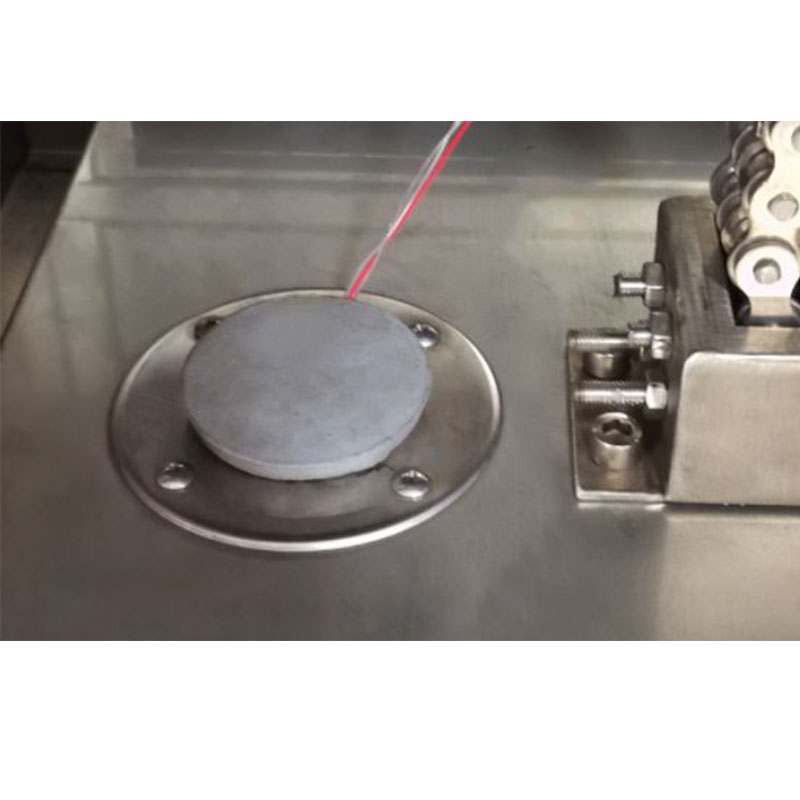

Cable Hole
