Cryogenic Chamber

CHARACTERISTIC
MODEL
Video

CHARACTERISTIC

The temperature range is -120℃ ~ +150℃
Mechanical compression refrigeration cooling system
Cascade compressor refrigerating unit
Nichrome heating Element
PTR Platinum Resistance PT100Ω/MV A-class temperature Sensor
equipped with centrifugal wind fan to accelerate gas cycle
The internal material is 304 stainless steel, mirror surface

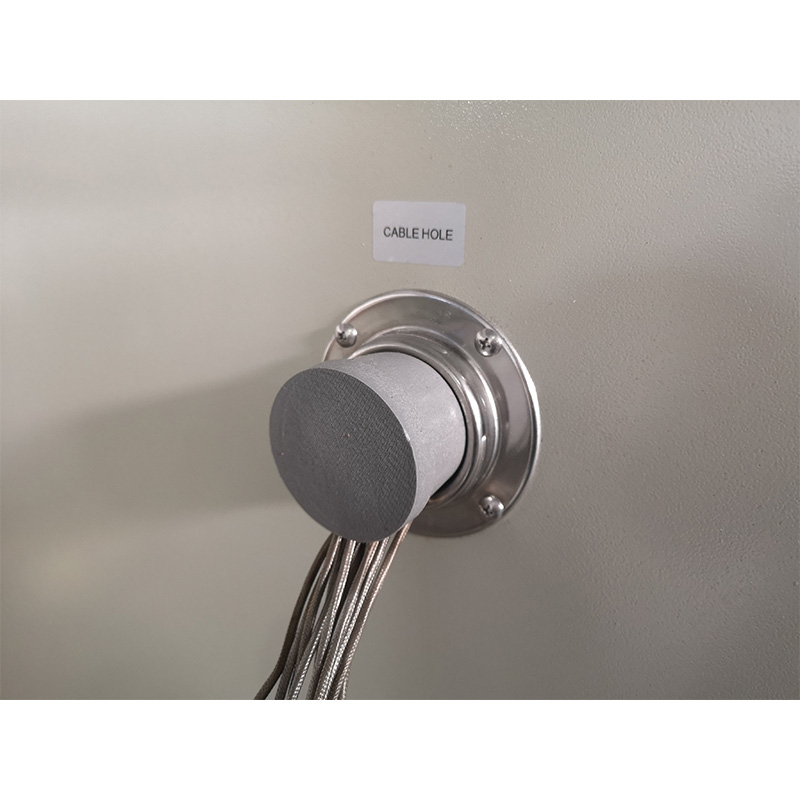

Standard configurations are 1 Cable hole (Φ 50,) with plug, 2 shelves
Safety protection devices
Standard and customized
CE ROHS mark

Product Details

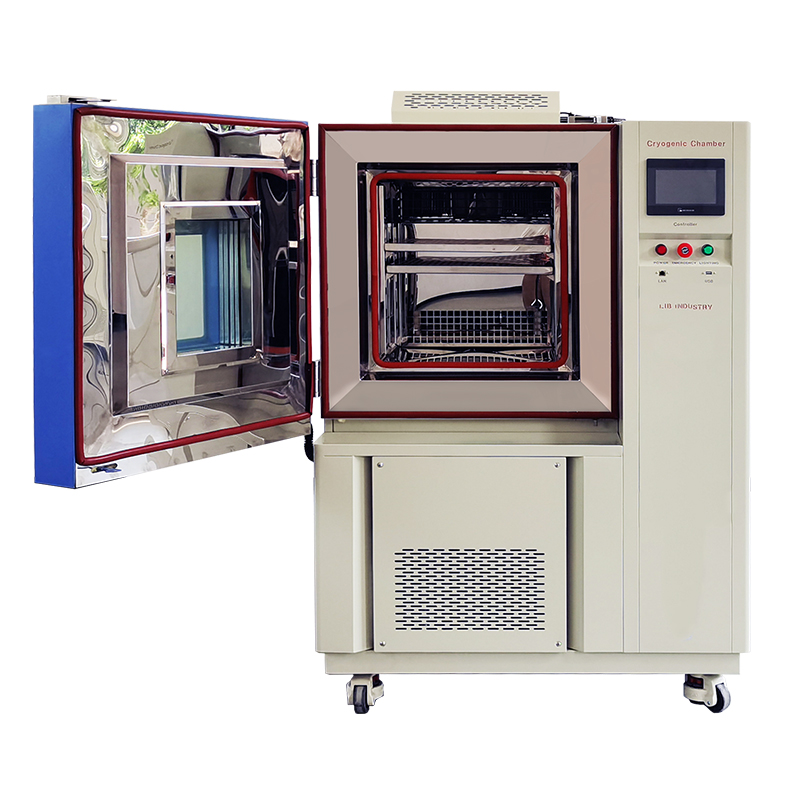

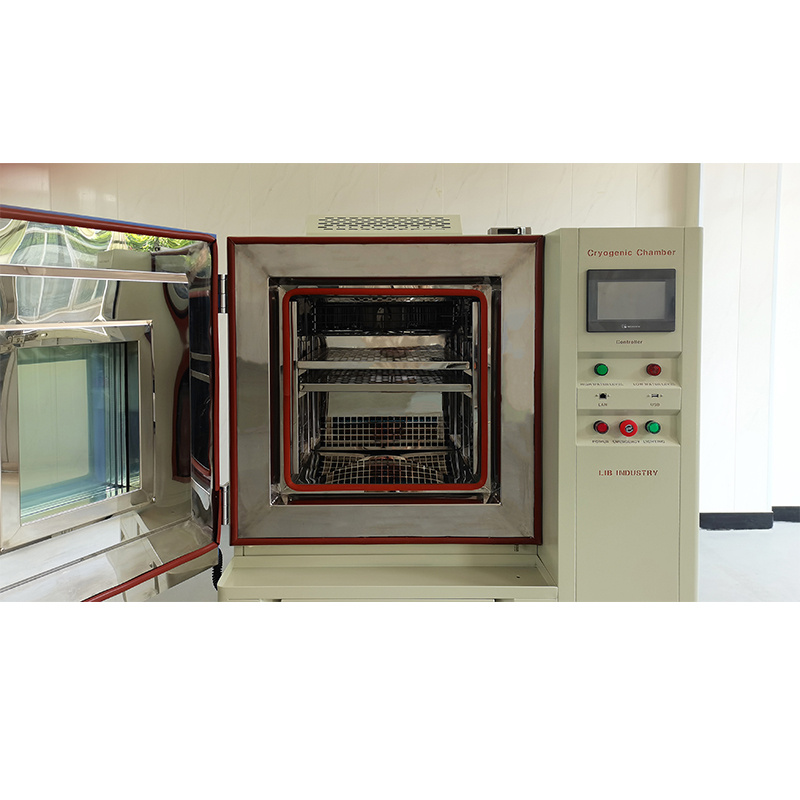

Workroom
The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion;
Nice ruggedness and long life.

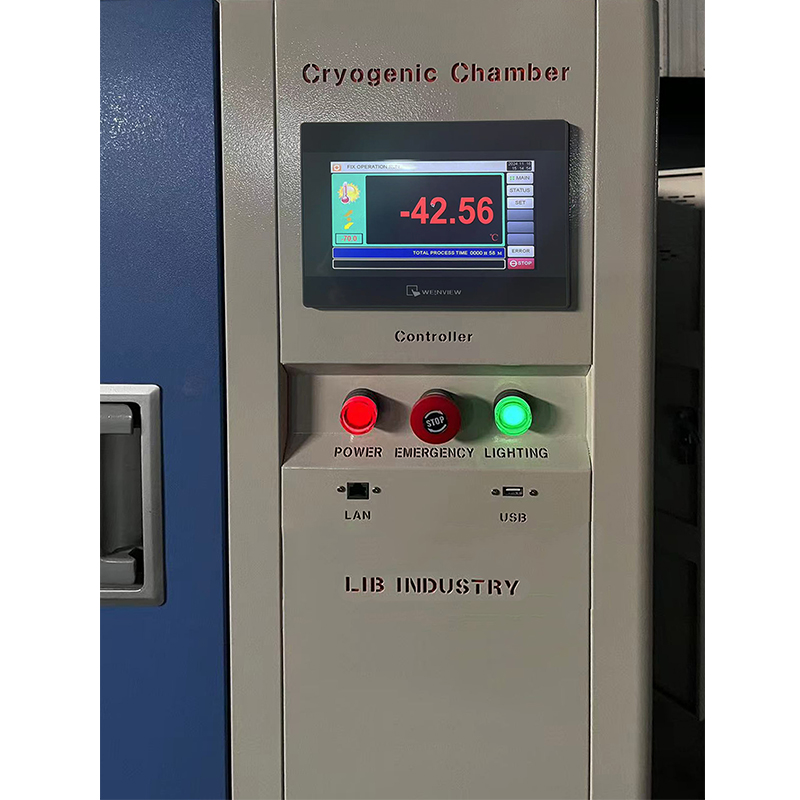

Controller
PID programmable color touch screen controller, network connection computer. While can edit 100 programs 100 segment, and the set system language is English for standard.

Cooling System
The refrigerant completes a refrigeration cycle through four basic processes of evaporation, compression, condensation, and throttling in the system.

Temperature Sensor
PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.

Application Area

Cryogenic Chamber is widely used in automobile, aerospace, aviation, military, daily necessities, raw materials and other industries, for testing the corrosion resistance and service life of the product b by simulating extremely harsh natural environments.

MODEL

Model	CF-100	CF-225	CF-500	CF-800	CF-1000
Internal dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall dimension (mm)	86010501620	96011501860	118013502010	128015502110	150015502110
Capacity	100L	225L	500L	800L	1000L
Temperature range	-120℃ ～+150 ℃
Temperature fluctuations	± 0.5 ℃
Temperature deviation	± 2.0 ℃
Heating rate	3 ℃ / min
Cooling rate	1 ℃ / min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling system	Mechanical compression refrigeration system
Safety device	Over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior material	Steel Plate with protective coating
Interior material	SUS304 stainless steel
Timing Function	0.1~999.9 (S、M、H) settable
Power Supply	220V 50HZ/380V 50HZ
Environmental conditional	5℃～+40 ℃ ≤85% RH

Warranty

3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.

Service

Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time. We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
