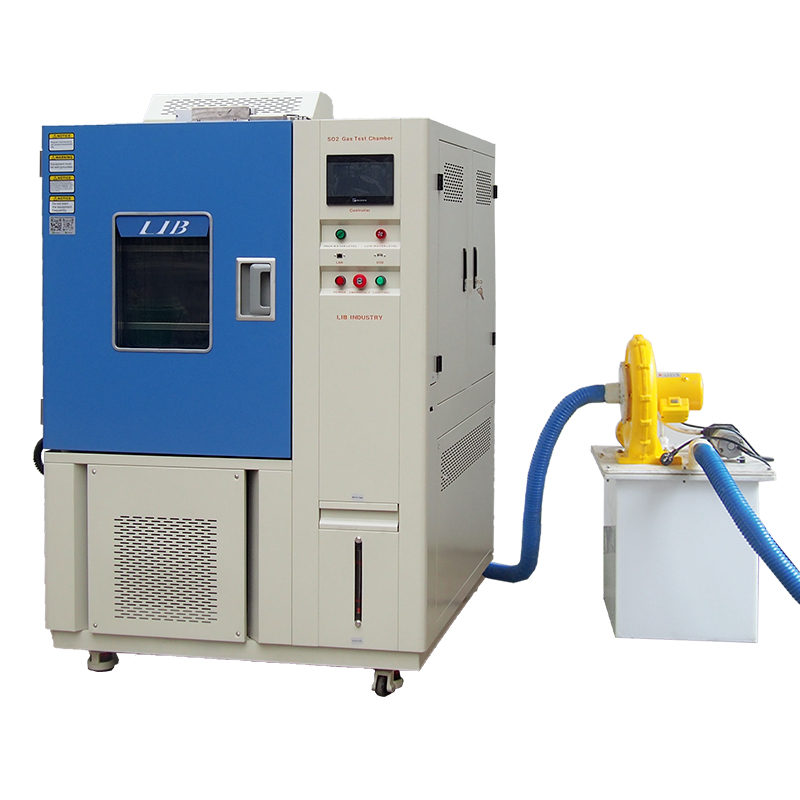

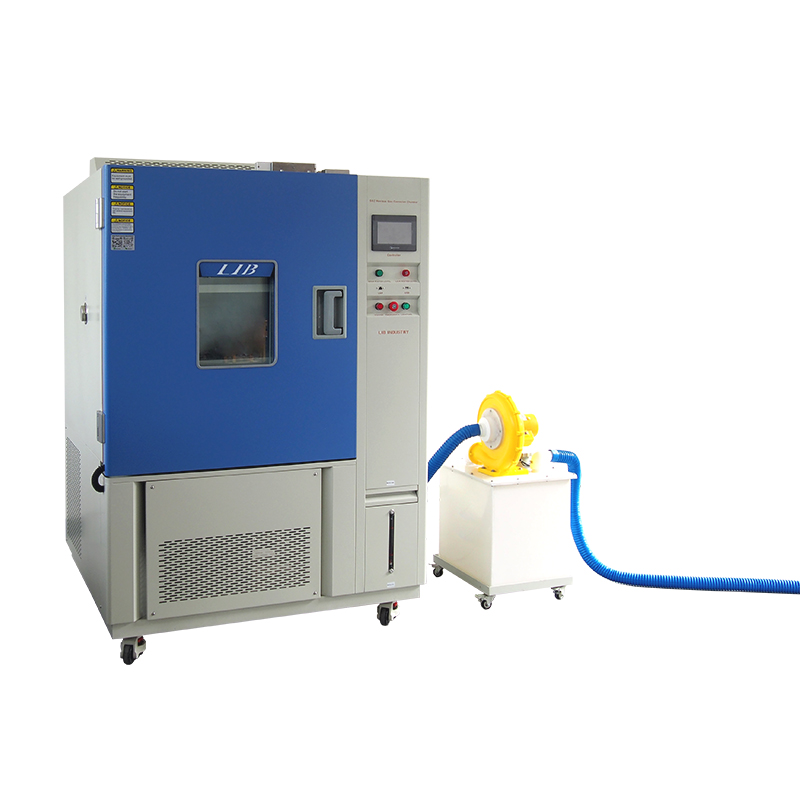

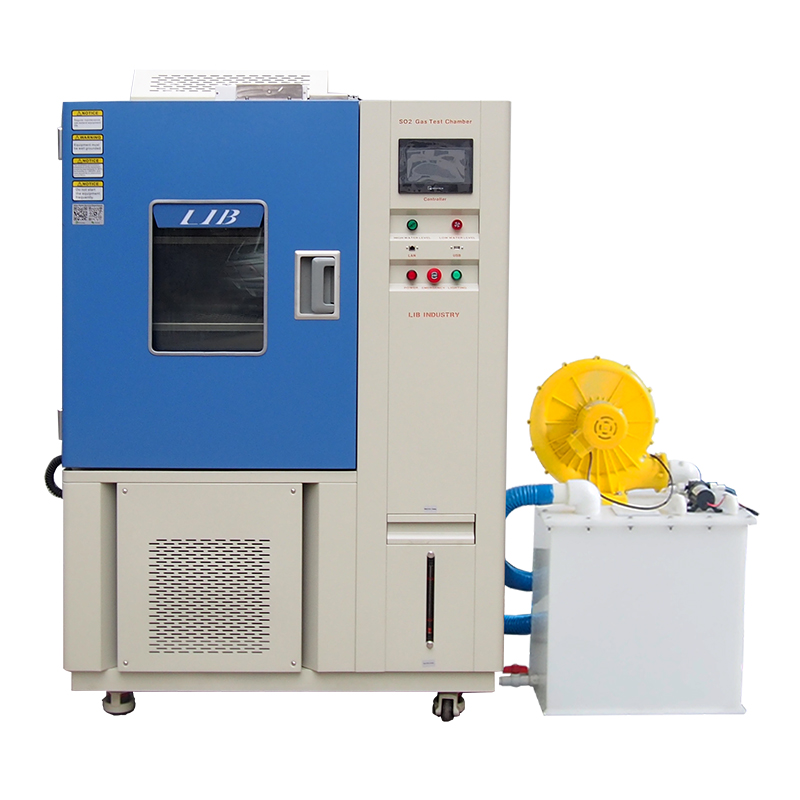

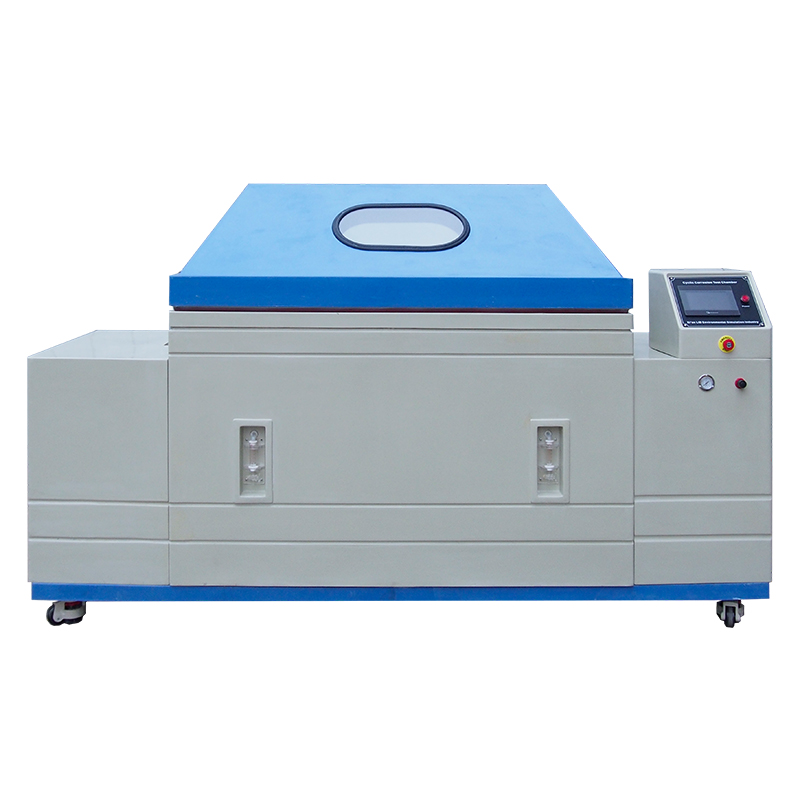

SO2 H2S Gas Corrosion Test Chamber

CHARACTERISTIC
MODEL
Video

CHARACTERISTIC

Floor Type

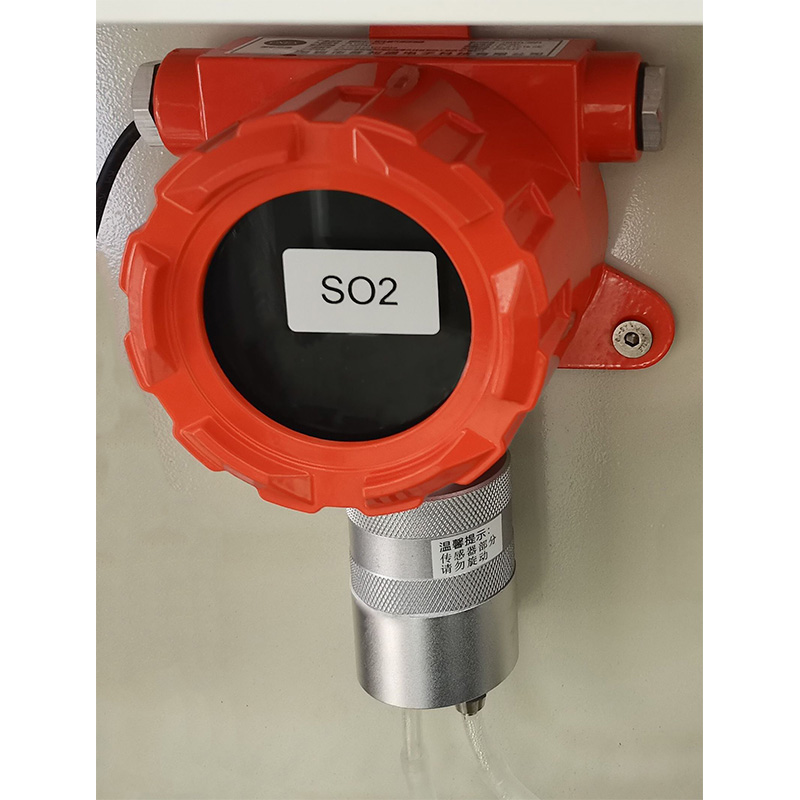

Automatic measure and control gas
Temperature control and display unit
Humidity control and display unit
Test SO2 H2S CO2 HCL single gas and mixed
Programmable color LCD touch screen controller
USB and Ethernet
Electromagnetic lock to prevent door from opening under working
Air cooled refrigeration system
Casters, shelf and cable port are standard
Safety protection system
CE mark

Product Details

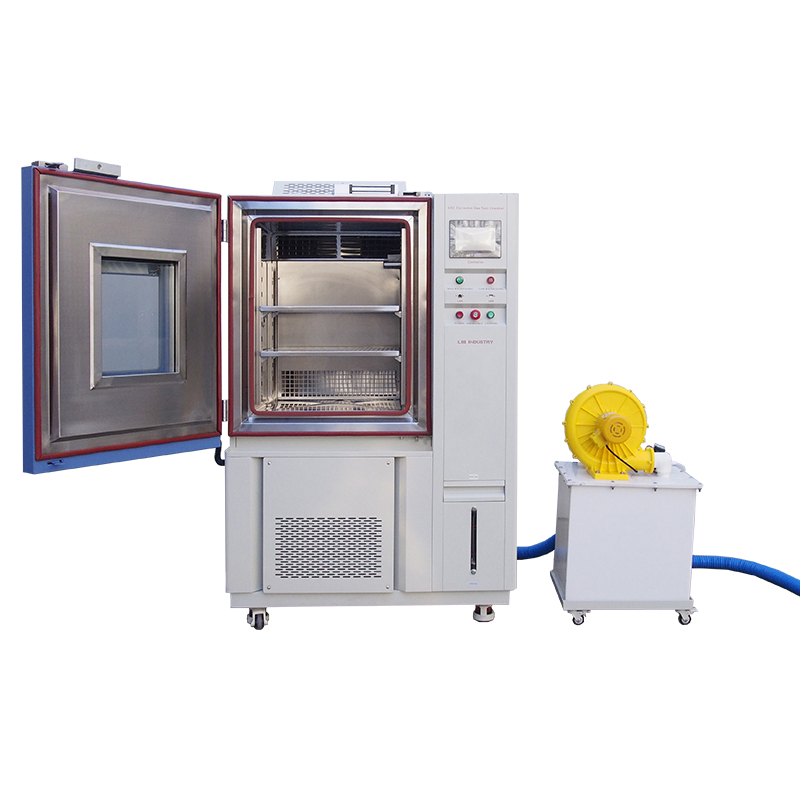

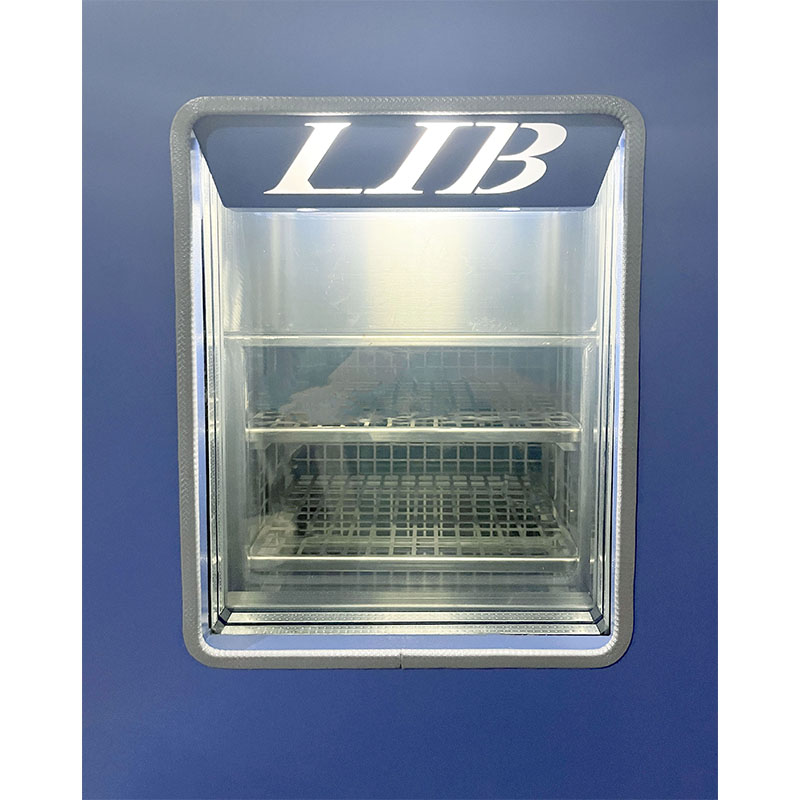

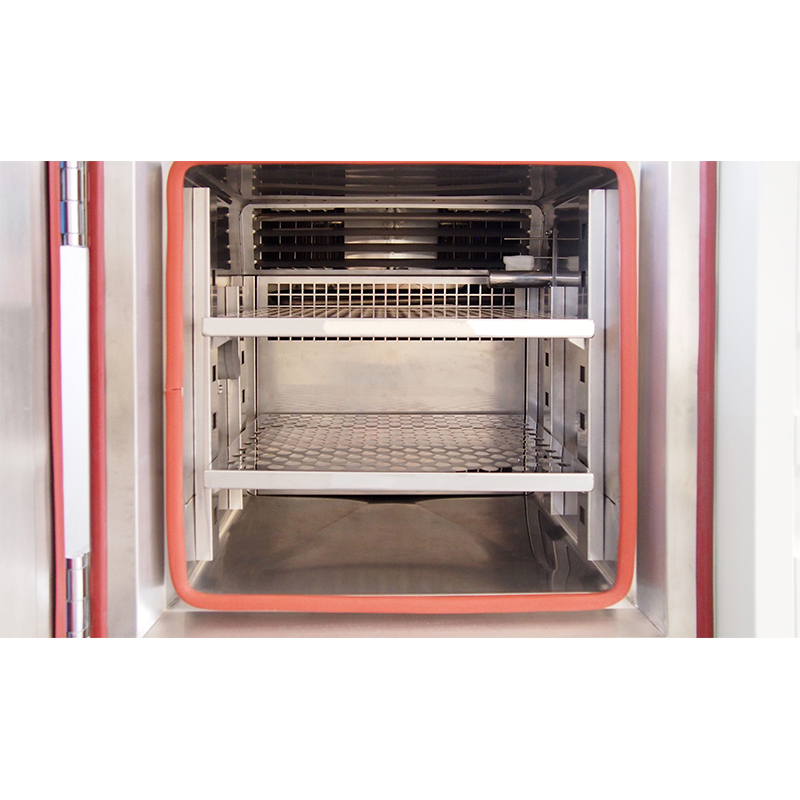

Workroom
The inner material is a double-layer material made of SUS304 stainless steel to ensure the robustness, and the outer layer is affixed with Fiber Reinforce Plastic for corrosion protection.
Standard configuration of two sample holders made of FRP.

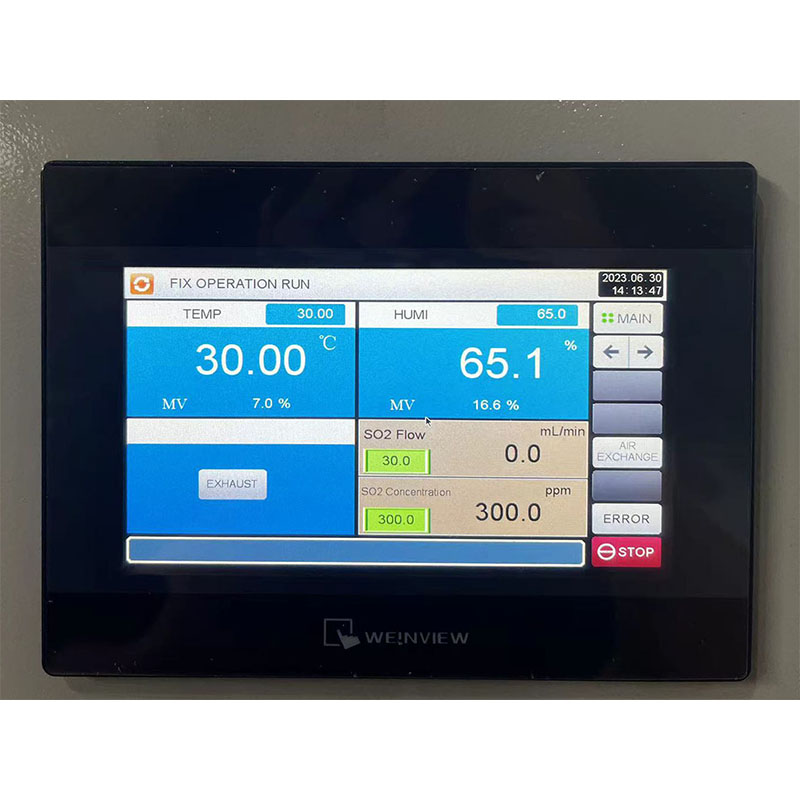

Controller
PID programmable color touch screen controller, network connection computer.
Can edit 100 programs 20 segment.
LIB also can preset program into the controller based on user testing requirements.
The set system language is English for standard.

Application Area

SO2 H2S Gas Corrosion Test Chamber is widely used in automobile, aerospace, electronics, paintings, battery, navigation industry, for testing the corrosion resistance and service life of the product in a single or mixed corrosion gas environment by simulating accelerated corrosion.

MODEL

Model	SO-100	SO-225	SO-500	SO-800	SO-1000
Internal dimensions (mm)	450450500	500600750	800700900	80010001000	100010001000
Overall dimensions (mm)	10508801440	105010202000	132013202170	147015202315	167015202315
Temperature range	15 ºC ~+80 ºC
Humidity range	30％~98% R.H
Temperature fluctuation	±0.5℃
SO2 concentration	25 ±5 ppm
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Interior material	Glass fiber reinforced plastics
Exterior material	Steel Plate with protective coating
Standard	IEC 60068-2-42
Power & voltage	AC 380V 50HZ

Warranty

3 Years Warranty, Lifelong Follow-up Services

LIB test chambers product all provide a three-year long-term warranty, and lib provides free maintenance and after-sales service within three years from the date of purchase.

Service

Professional customer service team, sales staff, after-sales team to solve customers’ problems online at any time. We set up agent centers and local service centers to improve service efficiency.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.
